| QDC23B magnet valve |
| [Click£º
] |
(1) functional purposes

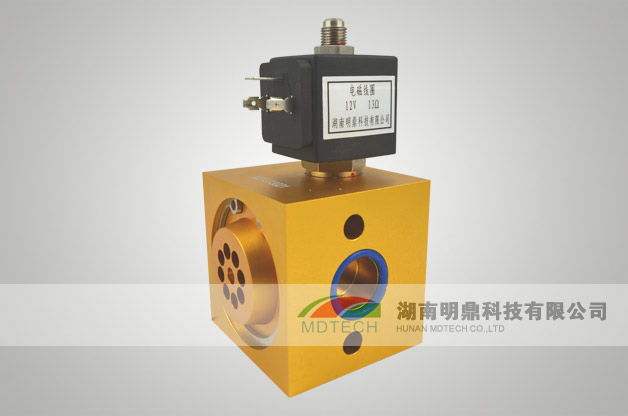

QDC23B two three-way solenoid valve is a kind of high speed switching power, gas control components, mainly used in railway locomotive vacuum circuit breaker and switch system and pneumatic control system at a high speed. The product of various performance indicators are reaching or higher than similar imported products
(2) the main technical indicators
a, the working environment temperature 40 ¡æ ~ + 70 ¡æ;
b, working voltage range: 10.2 V to 17.7 V DC;
c, the rated working voltage: DC 12 v.
d, the electromagnetic coil resistance: 13 + / - 1.04 ¦¸ (ambient temperature is 20 ¡æ);
e, coil electricity time: 15 ms or less.
f, work pressure range: 0.3 MPa to 1.0 MPa;
g, mechanical life: under normal working condition of not less than 300000 times;
h, product weight: 0.8 Kg.
(3) the appearance and installation dimensions
a, appearance size: 122.5 + / - 0.5 mm; 65.5 + / - 0.5 mm; 65 + / - 0.15 mm;
b, installation size: 42 + / - 0.125 mm; 2-8.5 mm ¦µ;
c, the size of the interface: inlet G1/2; ¦µ 19.
(4) material coding
Product material code: 6960000968
(5) application models
a, the main application system: TDV10A, TDV10 upright vacuum circuit breaker.
b, the main application models: HXD3C, HXD1C, 160 km models.
|
| |
| |
|
|
|
|
|
| |
|
